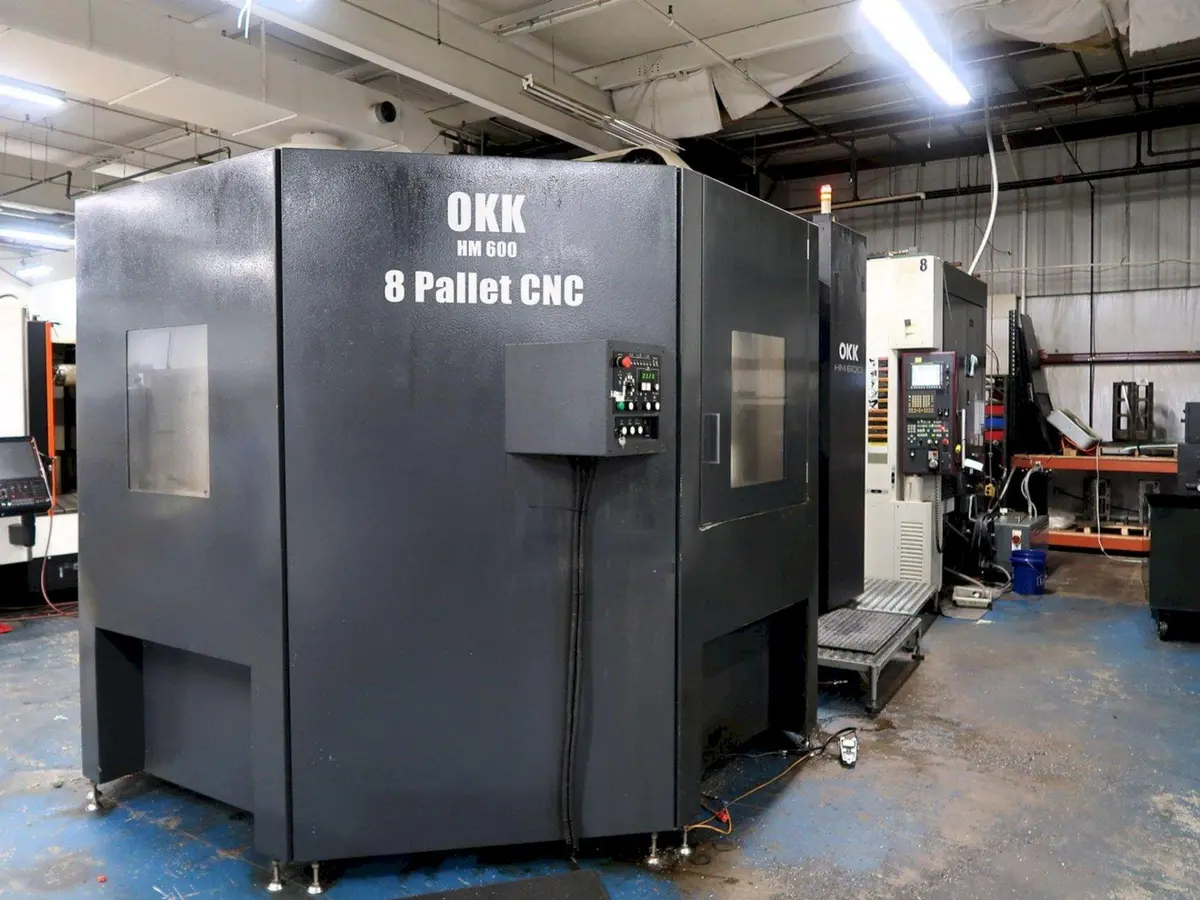

OKK HM600 8APC CNC Horizontal Machining Center
OKK HM600 8APC CNC Horizontal Machining Center
New: 2011
Specifications:
Travels:
X-Axis: 30.71"
Y-Axis: 29.53"
Z-Axis: 31.50"
Pallet Size: 24.8" x 24.8"
Pallet Stations: 8
Pallet Indexing: 0.001 Degree
Max Work Weight: 1540 Lbs
Spindle Taper: CAT 50
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP/ 33HP
Tool Changer Capacity: 160 Station
Rapid Traverse: 2,126 IPM XYZ
Equipped With:
Fanuc 31i-A5 CNC Control
Hyper HQ Mode A
Auto Restart
Macro Interrupt Function
Single Direction Positioning
NC Option Package A
(8) 24.8" x 24.8" Pallets
Built-In Rotary Table
Full B-Axis Contouring
160 Position Automatic Tool Changer
40 HP Motor
Thru Spindle Coolant
Chip Conveyor
