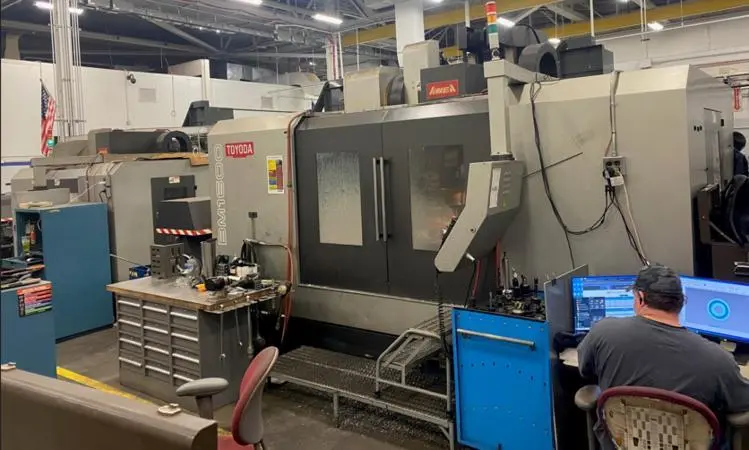

2007 Toyoda BM1600 Vertical Machining Center
Toyoda AWEA BM-1600 Vertical Machining Center Specifications:
Specifications:
Travels:
X-Axis: 63"
Y-Axis: 31.5"
Z-Axis: 31.5"
Spindle Nose to Table: 7.87" - 39.3"
Table Size: 67" x 31.5"
Max Weight on Table: 4409 lbs
T-Slot no. & Width: 5 X 0.7"
Spindle Taper: 50
Spindle Speed: 6000 RPM
Spindle Motor: 20 HP
Tool Changer: 30 Station Sidemount
Tool Weight: 33 lbs
Max Tool Length: 11.8"
Max Tool Diameter (Full): 6.29"
Max Tool Diameter (adj. pocket empty): 11.8"
X, Y Axis Rapid Traverse rates: 787 IPM
Z Axis Rapid Traverse rates: 708 IPM
Cutting Feedrate: 472 IPM
