| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 160" | 4,064 mm |
| Y-Vert Tvl of Head | 100" | 2,540 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 70.9" | 1,800.9 mm |
| Table-L | 86.6" | 2,199.6 mm |
| Spindle Tvl. | 60" | 1,524 mm |
| Weight | 44000 | 44000 |

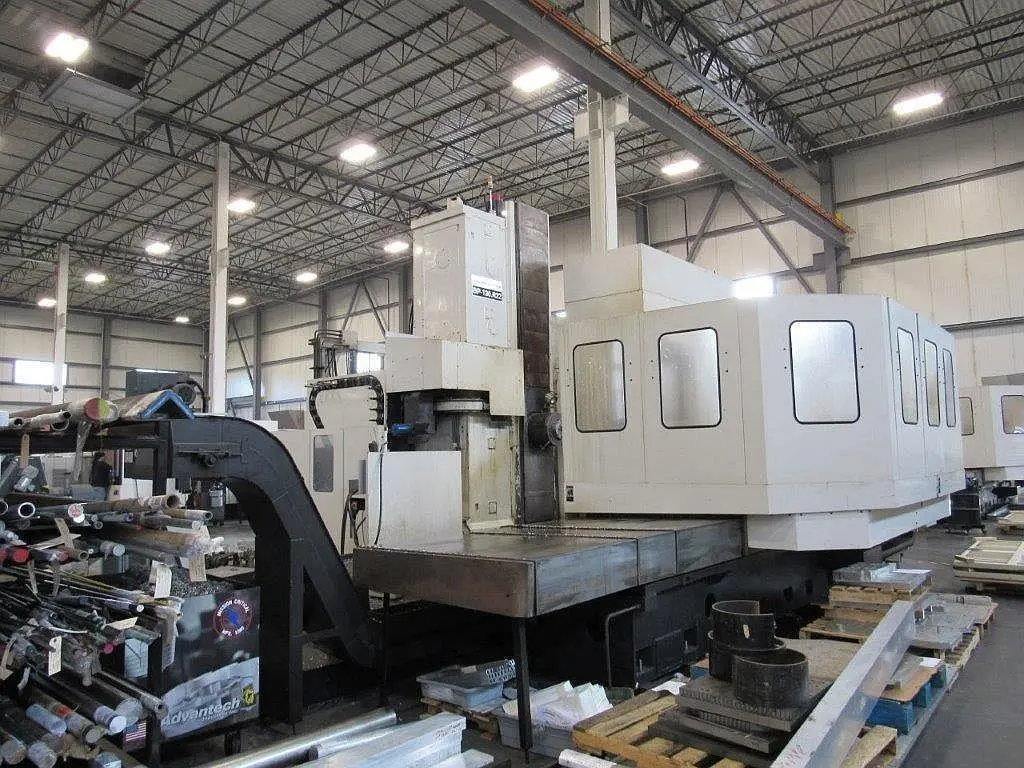

Toshiba BP-130.R22 Horizontal Boring & Milling Machine
New: 2007
Specifications:
Travels:
X-Axis: 160"
Y-Axis: 100"
Z-Axis: 60"
W-Axis: 27.5"
B-Axis: 360,000 deg
Spindle Diameter: 5.1"
Table Size: 70.9" x 86.6"
Automatic Tool Changer: 60 Tools
Spindle Motor: 40 HP
Spindle Speed: 2500 RPM
Coolant Thru Spindle: 150 PSI
Table Load Capacity: 44,000 Lbs
Equipped With:
Tosnuc 888 32-Bit CNC Control
4-Axis Rotary Table
Coolant Thru Spindle
Operators Pendant
Chip Conveyor
