2006 MAKINO A61

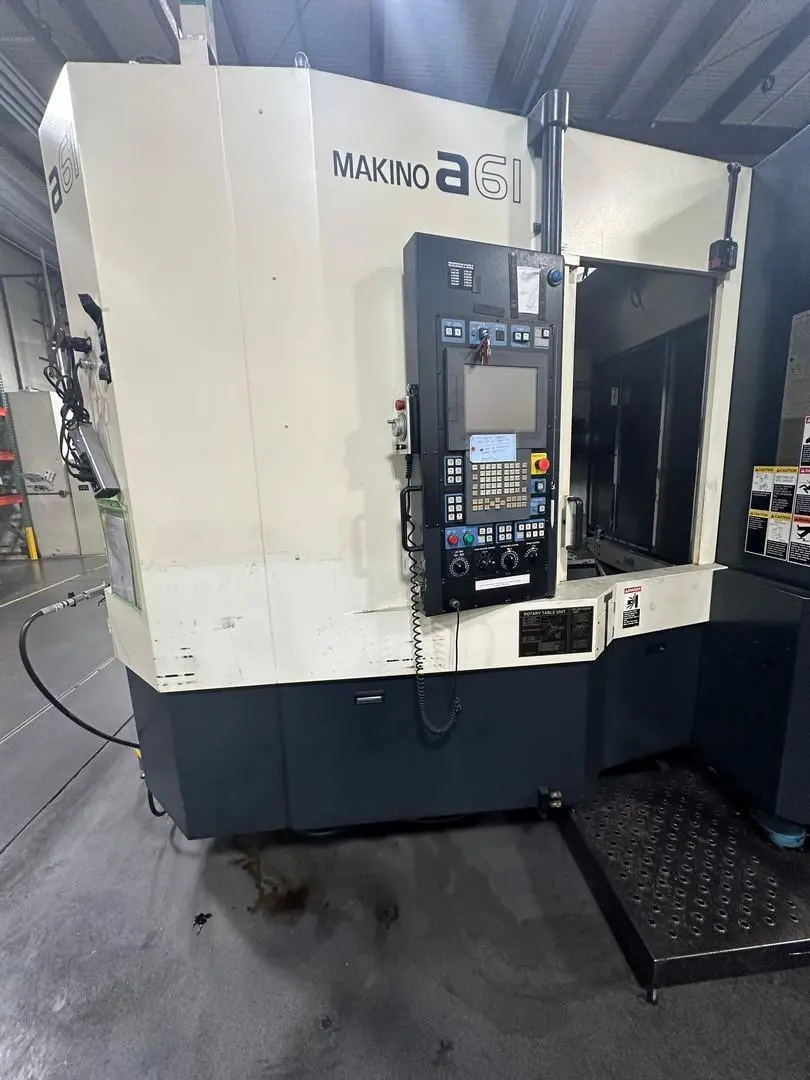

Makino A61 CNC Horizontal Machining Center
New: 2006

Specifications:
PALLET SIZE............ 19.7" X 19.7" (2)
PALLET INDEXING........ FULL 4TH / FULLY CONTOUR
MAX PALLET LOAD........ 1, 100 LBS.
X AXIS TRAVEL.......... 28.7"
Y AXIS TRAVEL.......... 25.6"
Z AXIS TRAVEL.......... 28.7"
SPNDL NOST TO PALLET... 2.76" - 31.5"
SPINDLE MOTOR.......... 30 HP
SPINDLE SPEED.......... 12, 000 RPM
SPINDLE TAPER.......... CAT40
PALLET CHANGE TIME..... 8 SEC.
RAPID TRAVERSE (X, Y, Z). 1, 960 IPM
MAX CUTTING FEEDRATE... 1, 960 IPM
TOOL CAPACITY.......... 60 ATC
MAXIMUM TOOL WEIGHT.... 26.4 LBS.
TOOL TO TOOL TIME...... .9 SEC.

EQUIPPED WITH:
PROFESSIONAL 5 CNC CONTROL
FULLY CONTOURING / FULL 4TH AXIS
12,000 RPM SPINDLE
THRU SPINDLE COOLANT (310 psi)
60 ATC
CHIP CONVEYOR
TOOL LIFE MANAGEMENT
RENISHAW MP700 SPINDLE PROBE
RENISHAW NC4 N0N-CONTACT LASER
DATA SERVER
EXPANDED WORK OFFSETS 48, EXPANDED EDITING
200 TOOL OFFSETS TYPE B
DATA SERVER
600 MACRO COMMON VARIABLES
HIGH SPEED SKIP FUNCTION
INCREASED PROGRAM STORAGE 1280M
